Well Water Reverse Osmosis System
Reverse Osmosis Drinking Water System
Well water reverse osmosis system provides high-quality water for worry-free drinking and cooking. This state-of-the-art filter will improve the quality of water from wells or municipal water supplies.
Here’s How RO Works:
The reverse osmosis system directs household water through a prefilter for filtration to remove sediment, chlorine taste and odor, and particulate matter.
The water is then forced, by pressure, through a semipermeable membrane where a high percentage of the dissolved solids, etc., are rejected and flushed to the drain.
Filtered water is reserved in the storage tank until needed. An activated carbon absorption block filter that removes tastes and odors polishes the water immediately before going to the faucet.
Features:
- Industry rated, 50 gallons per day membrane production rate, (actual production rate will vary depending on water usage and conditions).
- The filters are enclosed for cleanliness and ease of replacement.
- Changing filters does not require turning off the water, a simple 1/4 turn of the filter shuts off the water and the filter is released at the same time.
Options:
- Unique and elegant chrome or brushed nickel faucet styles.
- Optional electronic faucet indicates when filters and membrane need to be replaced.
- System is expandable if additional filters need to be added.
- Additional filter selections are available, including higher capacity sediment, or a Volatile Organic Compound (VOC) rated filter.
- The membrane can be upgraded to a 75 gallon per day membrane.
- Adaptor kits are available to easily add a permeate pump system, which provides improved flow rates at the faucet.
ERO 375 ECOWATER REVERSE OSMOSIS DRINKING WATER SYSTEM
Dimensions
| SPECIFICATIONS | ERO 375 |
|---|---|
| Feed water pressure (min.-max.) | 40-100 psi |
| Feed water temperature (min.-max.) | 40-100°F/4-38°C |
| Maximum Total Dissolved Solids (TDS) | 2,000 ppm |
| Membrane percent rejection of TDS | 92% |
| System product water production rate (gal. per day)* | 17.4 |
| Feed water pH limits | 4-11 pH |
| Maximum iron | 0 |
| Maximum hydrogen sulfide | 0 |
| Type of membrane | thin film composite |
| Prefilter (sediment/chlorine) | block carbon |
| Postfilter (taste and odor) | block carbon |
| Optional | |
|---|---|
| VOC filter block carbon Sediment filter polypropylene fibers High-flow membrane thin film composite Permeate pump adaptor |
block carbon polypropylene fibers thin film composite |
| Storage tank capacity | 4 gal. |
| Automatic shut off valve | yes |
| Shipping weight | 16 lbs. |
| EcoWater Systems LLC P.O. Box 64420 St. Paul, MN 55164-0420 0602868 10/18 Printed in the U.S.A. © 2018 EcoWater Systems LLC ecowater.com |
DRINKING WATER SYSTEM
*Tested to NSF/ANSI Standard 58.

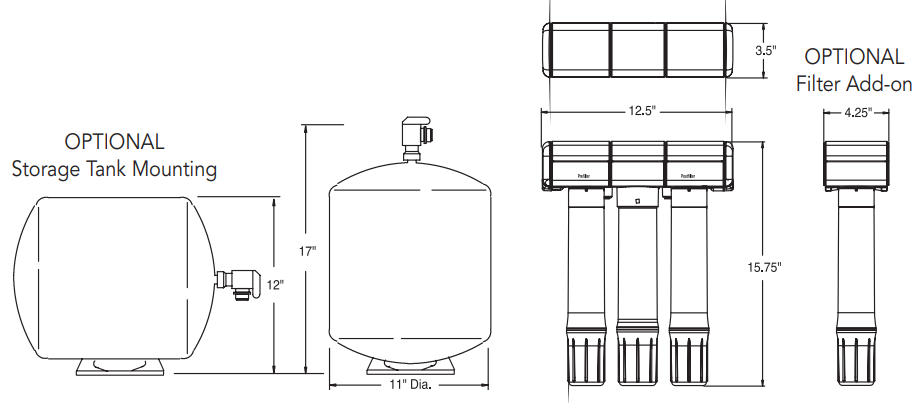

This drawing illustrates some of the customizable filter connection options the ERO 375 has to offer. Additional filter(s) may be added on to either side of standard unit.
- Optional sediment filter available
- Optional NSF Certified VOC* filter available
* VOC = Volatile Organic Compounds, 53 compounds in all, including Atrazine, Benzene, Carbon Tetrachloride, 2,4-D, Toluene, Trihalomethanes, and Xylenes
Typical impurities reduced by an EcoWater Reverse Osmosis Drinking Water System Model ERO 375 TFC System.
- Ammonium1
- Fluoride
- Arsenic2
- Lead
- Barium
- Magnesium1
- Bicarbonate1
- Nitrate/Nitrite
- Bromide1
- Radium 226/228
- Cadmium
- Selenium
- Chloride1
- Sodium1
- Chromium (Hex)
- Sulfate1
- Chromium (Tri)
- Tannin1
- Chlorine Taste & Odor
- TDS
- Copper
- Turbidity
- Cysts (Giardia/Cryptosporidia)
- Zinc1
Tested and Certified to NSF/ANSI Standard 58 by NSF International. Rated at 50 psi, 77 F, 750 ppm/TDS, product to storage tank.
Product water produced, amount of waste water and percent rejection will vary with changes in pressure, temperature and total dissolved solids.
- Tested by Spectrum Labs, Inc. a state certified testing laboratory.
- The system reduces pentavalent Arsenic (As V). The system has been validated on a chlorinated water supply. For more information, see the Arsenic Facts located in the back of the owner’s manual. ERO 375: For municipal and well water supplies. Chlorine must not exceed 2.0 ppm.
WARRANTY
- Five years on the well water reverse osmosis system for defects in material and workmanship, and 10 years on the storage tank.
- Exclusions to five years; one year on reverse osmosis membrane, three years on faucet and five years on electronics.
- The service life of the membrane and filter cartridges is dependent on the feedwater quality. Filters are not covered by the warranty
Contact us for more information about our well water treatment systems!
