ECOWATER 3700 SERIES WATER CONDITIONER

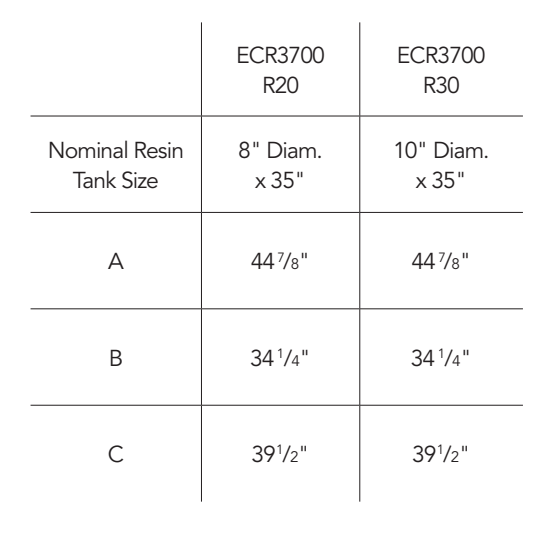

Dimensions
| SPECIFICATIONS | ECR3700R20 | ECR3700R30 |
|---|---|---|
| Efficiency (gr./lb. @ min. lb. salt dose) | 5,030 @ 1.1 | 5,030 @ 1.6 |
| Hardness Capacity (gr. @ max. lb. salt dose) | 18,400 @ 7.5 | 27,100 @ 11.0 |
| Certified Flow Rate (gpm @ psi) | 9 @ 8 | 11 @ 7 |
| Intermittent Flow Rate (gpm @ psi) | 14.2 @ 15 | 18.0 @ 15 |
| Intermittent Flow Rate (gpm @ psi) | 21.7 @ 30 | 27.0 @ 30 |
| Stratified Resin Bed (lbs.) | 32 | 47 |
| Quartz Gravel Base (lbs.) | 8 | 10 |
| Maximum Water Hardness (grains per gallon) | 40 | 60 |
| Maximum Clear Water Iron (ppm-Fe) | 10 | 12 |
| Approximate Water Used Each Regeneration (gal.) | 27 | 38 |
| Salt Storage Capacity (lbs.) | 225 | 200 |
| Supply Water Pressure Limits (psi) | 20-125 | 20-125 |
| Supply Water Temperature Limits (°F/°C) | 40-120 / 4-49 | 40-120 / 4-49 |
| Ambient Temperature Range (°F/°C) | 35-150 / 2-66 | 35-150 / 2-66 |
| Plumbing Connection Provided (inches) | 1 | 1 |
| Electrical Requirement, 120V, 50/60Hz, (24V DC, 500 mA, power supply included) |
Intermittent flow rate does not represent the maximum service flow rate used for determining the conditioner’s rated capacity and efficiency.
- Continuous operation at flow rates greater than the certified flow rate may affect capacity and efficiency performance. The validity of these flow rates is verified by NSF.
- Increased amounts of clear water iron can reduce conditioner’s efficiency. Refer to owner’s manual for details. Wisconsin requires additional treatment if water supply contains greater than 5 ppm clear water iron.
- When operated at 35 psi water pressure.
- Maximum pressure for Canadian use is 7.0 Kg/cm2
WARRANTY
- Our lifetime warranty covers rust, corrosion, leaks, or any other malfunctions that prevent your product from functioning.
- The 10-year warranty covers the valve body from defects in material or craftsmanship.
- The faceplate is covered for seven years from defects in materials and craftsmanship.
- All other parts are covered from defected materials or craftmanship for five years.
Contact us for more information about our water conditioner system.
