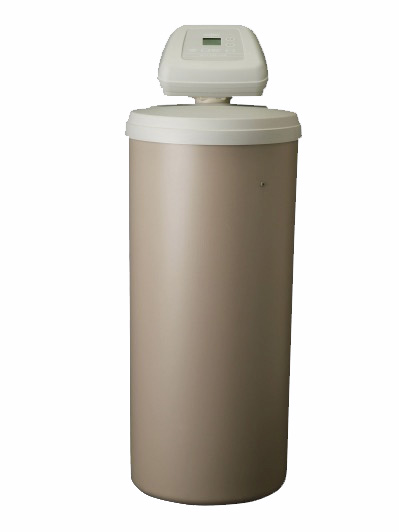

EP 6130 Water Softener
EP 6130 Water Softener
The Latest Technology for Water Treatment
Iron / Hardness Removal – ESD2750R25
- Demand Electronics Measure Water Use
- Coated Disk Valve for Troublefree Operation
- Proportional/Counter-Current Regeneration for Increased Efficiency
- Self-Cleaning Distributors
- 24 Volt Transformer
- The EP 6130 water softener has 8 Hours Memory Backup for Power Outages
- Double-Lined Reinforced Mineral Tank
The EP 6130 Water Softener Features:
- LCD Display
- Features Patented “Look Ahead” Technology for Peak Performance
- Quick Setup – Set the Time and Hardness and You Are Done
- Display Shows Time, Hardness and Regeneration Time
- Efficiency Selector – Choose Either Normal or High Efficiency Mode
ELECTRONIC DEMAND – ED
- EP 6130
- WATER SOFTENER
| SPECIFICATIONS | MODEL EP 6130 |
|---|---|
| Hardness Capacity (gr. @ max. lb. salt dose) | 32,000 @ 12.5 |
| Clear Water Iron Removal (ppm) | 8 |
| Maximum Hardness in Feed Water | 70 |
| High Capacity Cation Resin (ft3) | 0.78 |
| Efficiency (gr./lb. @ min. lb. salt dose) | 5120 @ 2.3 |
| Service Flow Rate (gpm @ psid) | 7.5 @ 9.1 |
| Intermittent Flow Rate (gpm @ 15 psid)1 | 10.0 |
| Intermittent Flow Rate (gpm @ 25 psid)1 | 13.4 |
| Resin Tank Dimensions (width x depth) | 8″ x 40″ |
| Inlet/Outlet Connection | 3/4″ Sweat |
| Supply Water Pressure Limits (psi) | 20-125 |
| Supply Water Temperature Limits (°F) | 40-120 |
| Ambient Temperature Range (°F) | 35-150 |
WARRANTY*
- 1 Year on Complete Unit
- 3 Years on Electronic Control Board
- 3 Years on Valve
- 5 Years on Salt Storage Tank
- 10 Years on Mineral Tank
| MODEL | A | B | C | D | E |
|---|---|---|---|---|---|
| Cabinet Model | |||||
| EP 6130 | 49″ | 41 1/4″ | 18 1/4″ | – | – |
